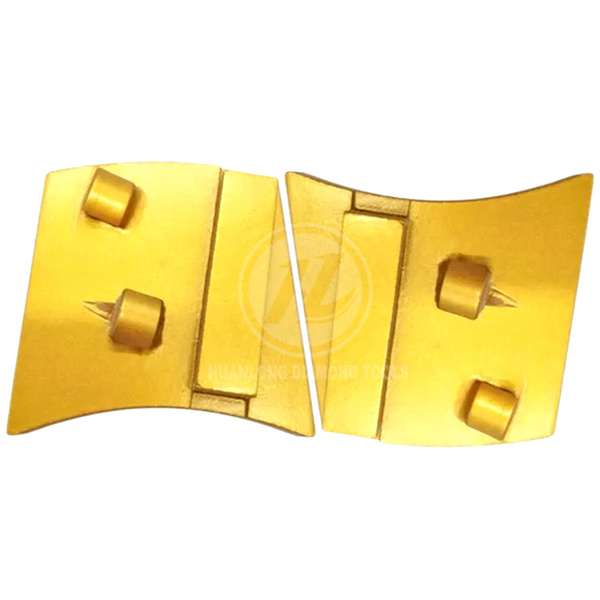

FAST-change PCD Diamond Grinding Segment With Metal Bond

PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Trapezoid PCD is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.

Categorie：

Trapezoid Pcd

Email：

contact@hldiamondtools.com

Send Inquiry
Chat Now!

hiddenValue

  • Description

  • FAST-change PCD Diamond Grinding Segment With Metal Bond
    HuanLong PCD grinding shoes are used for fast removing all types of coatings such as paint, varnish, glue, epoxy, acrylic, screed residue, VCT mastic, black tar adhesive as well as thick rubber materials on the concrete floor. Redi Lock is easy and quick set up of diamond tools, no need for multiple sets of diamond holder discs and no time consuming. Available for a variety of machine manufacturers.

    About Segments:

    a.PCD without sacrificial bars or metal bond button are very aggressive, and will leave a very coarse profile on the concrete. They are suitable for fast and aggressive grinding, removal coating thicker than 3mm.

    b.PCD with sacrificial bars or metal bond button are less aggressive, so they do not damage the concrete.The sacrificial bars or metal bond button act as a depth guide, and reduce the gauging of the floor cause by the aggressive PCD segments. Moreover, the metal bond will extend the life of PCD.

    Working type: Dry grinding / Wet grinding

    Various types of base plate available for suiting most of common brand grinding machine, such as REDILOCK, TRAPZOID, POLAR, HTC, LAVINA, SCANMAKSIN, etc. (Please contact us for options and details.)

    Note: The PCD coating removal tool is directional specific and you should check the rotation direction of the grinder heads.

    Keywords:
    • HuanLong diamond tools
    • PCD Grinding Plate
    • PCD Grinding Disc
    • PCD Grinding head
    • PCD Diamond Concrete Grinding Segments Tools
